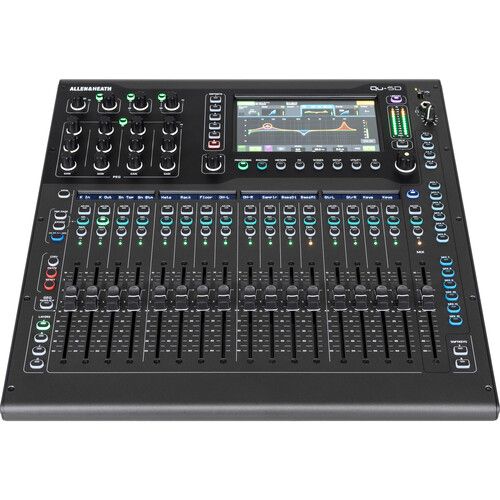

Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders with Dante
Price: 2599.99
Availability: Available For Order
More Information | Features |
-
32- Channel
-
Soft Keys
-
16 Microphone Preamps
-
12 Outputs
-
7" Touchscreen
-
SLink Port
|
|---|
| Dimensions | Dimensions: 17.7 x 8.3 x 18.7"
Weight: 22 lbs |
|---|
| Technical Specifications |
| Mixer |
|
|
| Max I/O Capacity |
36x Input / 12x Output
|
|
| Number of Analog Input Channels |
18 (16 Mono / 2 Stereo)
|
|
| Number of Mic Preamps |
16 |
|
| Number of Analog Output Channels |
12 |
|
| Mix Routing |
6x Mono Aux Send, 6x Stereo Aux Send |
|
| Groups |
6x Subgroup
|
|
| Presets |
No |
|
| Display |
7" Touchscreen
|
|
| Faders & Level Adjustment |
17x 3.9" / 100 mm Fader
|
|
| Meters |
Main Meter: 2x 12-Segment LED, Channel Meter: Single LED |
|
| |
|
|
| Signal Processing |
|
|
| Dynamic Processing |
Input Channels: Compressor, Gate, Master: Compressor, Limiter |
|
| EQ |
Input Channels: 4-Band Parametric |
|
| Filters |
High-Pass
|
|
| Solo/Mute |
Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
|
|
| Audio Delay |
Adjustable Up to 682 ms
|
|
| Automatic Mic Mixing |
Yes |
|
| |
|
|
| Digital Audio |
|
|
| Sample Rates |
96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz |
|
| Bit Depth |
Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit |
|
| |
|
|
| Connectivity |
|
|
| Analog Inputs |
1x XLR Talkback Input
16x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled) |
|
| Analog Outputs |
12x XLR Balanced Output
2x 1/4" TRS Balanced Output |
|
| Phantom Power |
+48 V |
|
| Digital I/O |
1x etherCON Input/Output (Network)
1x XLR AES3 Output
1x etherCON Dante Input/Output |
|
| MIDI I/O |
No |
|
| USB I/O |
1x USB-A 2.0 (External Memory)
1x USB-C 2.0 (Audio Streaming) |
|
| USB I/O Capacity |
32x Input / 32x Output
|
|
| Other I/O |
1x RJ45 Control In/Out (Bi-Directional)
|
|
| Wireless |
No |
|
| External Display I/O |
No |
|
| |
|
|
| Recording |
|
|
| Max Multitrack Recording |
32 Tracks
|
|
| Media Support |
SD, USB Drive
|
|
| File Format Support |
WAV |
|
| |
|
|
| Compatibility |
|
|
| OS Compatibility |
Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS |
|
| Mobile Device Compatibility |
Android Smartphone
Android Tablet
iPad
iPhone |
|
| |
|
|
| Power |
|
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
|
| Rack Mountable |
Yes |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|---|
| MPN | AH-QU-5D |
|---|
| Availability | Available For Order |
|---|
