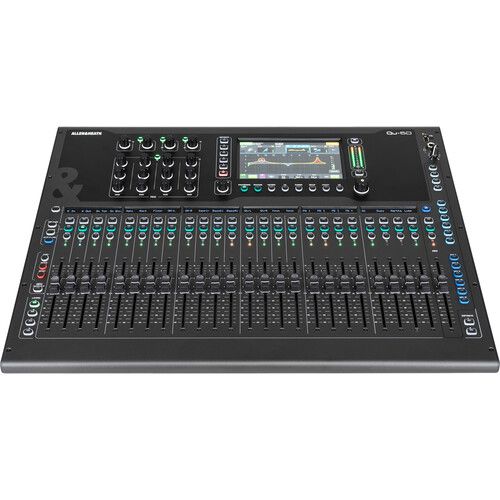

Allen & Heath Qu-6 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders with Dante
Price: 3599.99
Availability: Available For Order
More Information Features |
-
7" Touchscreen
-
24 Microphone Preamp
-
Soft Keys
-
16 Outputs
-
SLink Port
-
36 Channel
|
Dimensions | Dimensions: 31.5 x 8.3 x 18.7"
Weight: 28.43 |
Technical Specifications |
Mixer |
|
Max I/O Capacity |
36x Input / 12x Output
|
Number of Analog Input Channels |
28 (24 Mono / 2 Stereo)
|
Number of Mic Preamps |
12 |
Number of Analog Output Channels |
16 |
Mix Routing |
6x Mono Aux Send, 6x Stereo Aux Send |
Groups |
6x Subgroup
|
Presets |
No |
Display |
7" Touchscreen
|
Faders & Level Adjustment |
25x 3.9" / 100 mm Fader
|
Meters |
Main Meter: 2x 12-Segment LED, Channel Meter: Single LED |
|
|
Signal Processing |
|
Gain/Trim Range |
+60 dB |
Input Pad |
-20 dB (Mic/Line Inputs)
|
Input Polarity |
Normal/Reverse
|
Dynamic Processing |
Input Channels: Compressor, Gate, Master: Compressor, Limiter |
EQ |
Input Channels: 4-Band Parametric |
Graphic EQ |
Yes |
Filters |
High-Pass
|
Solo/Mute |
Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
|
Built-In Effects |
4x Reverb, Stereo Delay (Tap), 2x Reverb (Gated), 2x Vocal Effect,3x Stereo Chorus, Chorus, 3x Flanger, Phaser |
Audio Delay |
No |
Automatic Mic Mixing |
Yes |
|
|
Digital Audio |
|
Sample Rates |
96 kHz AES3 Output: 44.1 / 48 / 88.2 / 96 kHz Stereo Record: 96 kHz Stereo Playback: 44.1 / 48 / 96 kHz Multitrack Playback/Multitrack Record: 96 kHz |
Bit Depth |
Up to 96-Bit Stereo Record: 24-Bit Stereo Playback: 16 / 24-Bit Multitrack Playback, Multitrack Record: 24-Bit |
|
|
Performance |
|
Frequency Response |
20 Hz to 20 kHz ±5 dB
|
Max Input Level |
XLR Mic Input: 16 dBu, 1/4" TRS Line Input: +30 dBu (Pad) |
Analog Dynamic Range |
110 dB
|
I/O Impedance |
Mic Input: 1.5 Kilohms, Line Input: 20 Kilohms |
Noise Floor |
-88 dBu
|
THD+N |
Mic/Line Input: 0% at Unity Gain |
Signal Generator |
Sine, White, Pink, Band-Pass Noise |
|
|
Connectivity |
|
Analog Inputs |
1x XLR Talkback Input 24x XLR Balanced Mic/Line Input 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled) |
Analog Outputs |
16x XLR Balanced Output 2x 1/4" TRS Balanced Output |
Phantom Power |
+48 V
|
Digital I/O |
1x etherCON Input/Output (I/O) 1x XLR AES3 Output |
MIDI I/O |
No |
USB I/O |
1x USB-A 2.0 (External Memory) 1x USB-C 2.0 (Audio Streaming) |
USB I/O Capacity |
32x Input / 32x Output
|
Other I/O |
1x RJ45 Control In/Out (Bi-Directional) 1x 1/4" Footswitch |
Wireless |
No |
External Display I/O |
No |
|
|
Recording |
|
Max Multitrack Recording |
32 Tracks
|
Media Support |
SD, USB Drive
|
File Format Support |
WAV |
|
|
Compatibility |
|
OS Compatibility |
Computer: Windows 10 or Later / macOS 10.14 to 11 Mobile: Android/iOS |
Mobile Device Compatibility |
Android Smartphone Android Tablet iPad iPhone |
|
|
General |
|
Input Power |
100 to 240 VAC, 50 / 60 Hz |
Rack Mountable |
Yes |
N/A |
MPN | AH-QU-6D |
