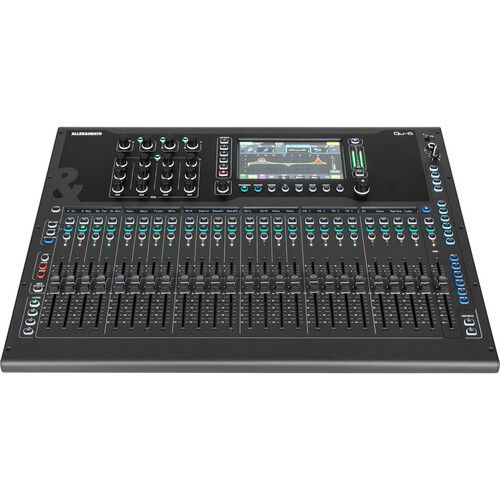

| Mixer |
|
|
| Max I/O Capacity |
36x Input / 12x Output
|
|
| Number of Analog Input Channels |
28 (24 Mono / 2 Stereo)
|
|
| Number of Mic Preamps |
24 |
|
| Number of Analog Output Channels |
16 |
|
| Mix Routing |
6x Mono Aux Send
6x Stereo Aux Send |
|
| Groups |
6x Subgroup
|
|
| Presets |
No |
|
| Display |
7" Touchscreen
|
|
| Faders & Level Adjustment |
Faders & Level Adjustment |
|
| Meters |
Main Meter: 2x 12-Segment LED, Channel Meter: Single LED |
|
| |
|
|
| Signal Processing |
|
|
| Gain/Trim Range |
+60 dB
|
|
| Input Pad |
-20 dB (Mic/Line Inputs)
|
|
| Input Polarity |
Normal/Reverse
|
|
| Dynamic Processing |
Input Channels: Compressor, Gate, Master: Compressor, Limiter |
|
| EQ |
Input Channels: 4-Band Parametric |
|
| Graphic EQ |
Yes |
|
| Filters |
High-Pass
|
|
| Solo/Mute |
Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
|
|
| Built-In Effects |
4x Reverb, Stereo Delay (Tap), 2x Reverb (Gated), 2x Vocal Effect, 3x Stereo Chorus, Chorus,3x Flanger, Phaser |
|
| Audio Delay |
No |
|
| Automatic Mic Mixing |
Yes |
|
| |
|
|
| Digital Audio |
|
|
| Sample Rates |
96 kHz AES3 Output: 44.1 / 48 / 88.2 / 96 kHz, Stereo Record: 96 kHz, Stereo Playback: 44.1 / 48 / 96 kHz, Multitrack Playback/Multitrack Record: 96 kHz |
|
| Bit Depth |
Bit Depth Up to 96-Bit Stereo Record: 24-Bit, Stereo Playback: 16 / 24-Bit, Multitrack Playback, Multitrack Record: 24-Bit |
|
| |
|
|
| Performance |
|
|
| Frequency Response |
20 Hz to 20 kHz ±5 dB
|
|
| Max Input Level |
XLR Mic Input: 16 dBu, 1/4" TRS Line Input: +30 dBu (Pad) |
|
| Analog Dynamic Range |
110 dB
|
|
| I/O Impedance |
Mic Input: 1.5 Kilohms, Line Input: 20 Kilohms |
|
| Noise Floor |
-88 dBu
|
|
| THD+N |
Mic/Line Input: 0% at Unity Gain |
|
| Signal Generator |
Sine, White, Pink, Band-Pass Noise |
|
| |
|
|
| Connectivity |
|
|
| Analog Inputs |
1x XLR Talkback Input, 24x XLR Balanced Mic/Line Input, 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled) |
|
| Analog Outputs |
16x XLR Balanced Output, 2x 1/4" TRS Balanced Output |
|
| Phantom Power |
+48 V
|
|
| Digital I/O |
1x etherCON Input/Output (I/O), 1x XLR AES3 Output |
|
| MIDI I/O |
No |
|
| USB I/O |
1x USB-A 2.0 (External Memory)
1x USB-C 2.0 (Audio Streaming) |
|
| USB I/O Capacity |
32x Input / 32x Output
|
|
| Other I/O |
1x RJ45 Control In/Out (Bi-Directional)
1x 1/4" Footswitch |
|
| Wireless |
No |
|
| External Display I/O |
No |
|
| |
|
|
| Recording |
|
|
| Max Multitrack Recording |
32 Tracks
|
|
| Media Support |
SD, USB Drive
|
|
| File Format Support |
WAV |
|
| |
|
|
| Compatibility |
|
|
| OS Compatibility |
Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS |
|
| Mobile Device Compatibility |
Android Smartphone, Android Tablet, iPad, iPhone |
|
| |
|
|
| General |
|
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
|
| Rack Mountable |
Yes |
|
