AVer 3 Camera, 30x PTZ Robotic Camera System w Joystick Control
SKU
KAVER3
$411.00
Build the ultimate moving camera system with this package from AVer and Kingdom!
$411.00
Out of stock
Availability: Available For Order
Build the ultimate moving camera system with this package from AVer and Kingdom!
Just add the Video Switcher of your choice and streaming capture device and you are on your way to building a broadcast quality multi camera set up!
This great camera package features three PTZ cameras with 30x optical zoom for close up shots and a dedicated joystick control unit. This system includes 3 100 ft HDMI cables for video and 3 100 ft Cat5 cables for joystick control.
Note:
Video swicther and capture device sold seperately
Wall or ceiling mount sold seperately

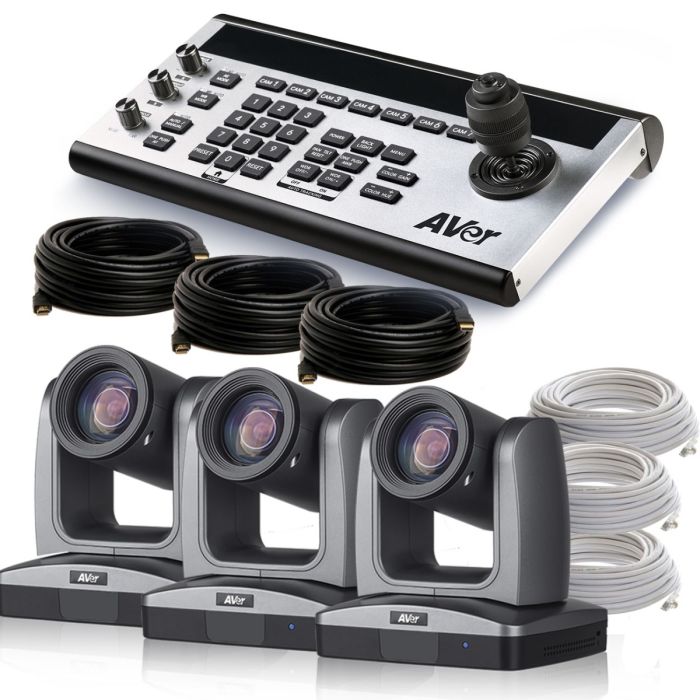

Package Includes:
3x - APTZ330 30x Pan, Tilt and Zoom Cameras.
1x - ACLO1 Josytick Controller with Power Over Ethernet.
3x - 100 Ft HDMI cable runs
3x - 100 ft Cat5 cable runs with terminated ends.
Camera
| Image sensor | Effective picture elements | Output resolution |
|---|---|---|
| 1/2.8" 1080p 60fps Exmor CMOS | Approx. 2.1 megapixels | Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50 |
| TV line | Shutter speed | Exposure control |
| 600 (Corner/Wide) | 1/1s to 1/32,000s | Auto, Manual, Priority AE( Shutter, IRIS), BLC |
| White balance | Optical zoom | Digital zoom |
| Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) | 30X | 12X |
| Horizontal viewing angle | Focal length | Aperture (Iris) |
| 67° (Wide) ~ 2.3° (Tele) | f = 4.3mm (Wide) ~ 129mm (Tele) | F = 1.6 (Wide) ~ 4.7 (Tele) |
| Minimum working distance | Pan/Tilt angle | Pan/Tilt speed (Manual) |
| 0.01m (Wide), 1.2m (Tele) | Pan: +-170°, Tilt : +90°/-30° | Pan: 0.1 ~ 100° /Sec, Tilt : 0.1 ~ 100° /Sec |
| Preset speed | Preset position | Camera control - interface |
| Pan: 200° /Sec, Tilt : 200° /Sec | 10 (IR), 255 (RS232) | RS232 (DIN8) / RS422 (RJ45) |
| Camera control - protocol | Image processing | Power frequency |
| VISCA (RS232/RS422/IP), CGI (IP) | Noise reduction (2/3D), Flip, Mirror | Auto / 50Hz / 60Hz |
Dedicated Joystick Control
Specifications
Top
Back
I/O interface
| Communication | Baud rate | |
|---|---|---|
| RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades | 2400, 4800, 9600, 19200, 38400 bps |
User interface
| Display | Rotation button | Camera shortcut channel |
|---|---|---|
| OLED display screen | 3 | 7 |
| Joystick | Keyboard | |
| 1 | Backlit keys |
Camera control
| IP Aaddress | UDP port | Cam ID |
|---|---|---|
| Default: 192.168.1.162 / 163 / 164 / 165 / 166 / 167 / 168 (from Cam 1 to Cam 7) | 08090 | 1 to 7 |
| Control protocol | ||
| VISCA, SONY VISCA , Pelco-D/P, UDP, IP (VISCA over IP) |
System
| Operating temperature | Dimensions | Gross weight |
|---|---|---|
| 0°C ~ 40°C (32°F ~ 104°F) | 173 mm (W) x 99 mm (H) x 350 mm (D) | 2.5 kg |
| Power source | Power consumption | Application |
| DC 12V/2A, AC 100–240V | Indoor | |
| Package content | Part number | |
| User manual / 4-pin RS485 terminal / power adapter |
| Availability | Available For Order |
|---|---|
| Dimensions | N/A |
| Technical Specifications | N/A |
