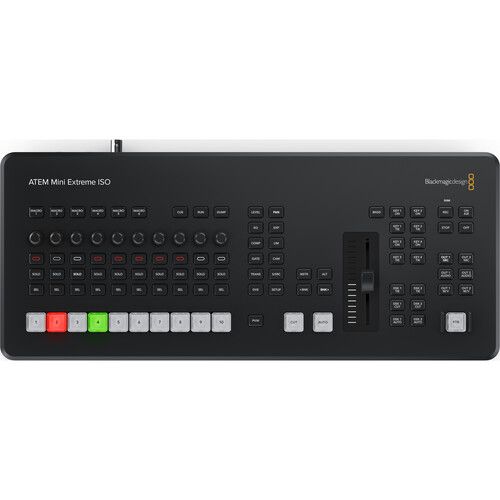

Blackmagic Design ATEM Mini Extreme ISO G2 Live Switcher

Name: Blackmagic Design ATEM Mini Extreme ISO G2 Live Switcher
Brand: Blackmagic
SKU: KATEMEXTISOG2
Price: 2195.00 USD
Availability: InStock

SKU

KATEMEXTISOG2

Be the first to review this product

$2,195.00

Blackmagic Design ATEM Mini Extreme ISO G2

$2,195.00

In stock

Availability: Available For Order

Blackmagic Design ATEM Mini Extreme ISO G2

Powerful yet compact live switcher for building a high-end broadcast studio. This mini switcher makes it easy to create professional multi camera productions for live streaming to YouTube and business presentations using Zoom or Teams! Simply connect and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Use the built in DVE for exciting picture in picture effects, perfect for commentary!

More Information

Features

26 input
2-Channel Audio Mixer
Dual USB-C
4 Upstream and 2 Downstream Keyers
HD Multiview Output

Dimensions

Dimensions: 16.3 x 7.35 x 1.97"

Weight: 5 lbs

Technical Specifications

Processing
Switching Type	Pushbutton, Software
Processing Resolution	1080p

Mix Effects
Available M/E Layers	9 M/E
Effect Types	2x DVE 4x Luma Key 4x Chroma Key
Graphics Memory	20 Images
Downstream Keys	2x Chroma, Luma, DVE
Generators	5x Pattern 2x Color
Audio Mixing	2-Channel Mixing

Input
Number of Video Input Sources	8
Video Inputs	8x HDMI
Input Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	2x XLR 3-Pin Mono Analog Female 1x BNC Female
Input Audio Format	Analog
Embedded Audio Input	HDMI: 2-Channel (per Input)

Output
Output	2
Video Outputs	3x HDMI Female
Output Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs	1x 1/4" TRS Stereo Analog Female
Embedded Audio Output	HDMI: 2-Channel
Multiview Output	16-Way Multiview via HDMI

Connectivity
Other I/O	2x RJ45 LAN Input/Output 2x USB-C Output 1x Thunderbolt 3 Output
HDCP Support	No

IP Encoding/Decoding
IP Video	H.264: 1920 x 1080 Encoding
Transport Protocols	RTMP
Simultaneous Streams	1 Streams

Internal Recording
Recording Modes	1920 x 1080p up to 60 fps (MP4)

General
OS Compatibility	macOS 14 or Later / Windows 10 or Later
Wireless	No
Power I/O	1x Barrel (12 VDC ) Input

MPN

BMD-SWATEMMINICEXTISOG2

Availability

Available For Order
