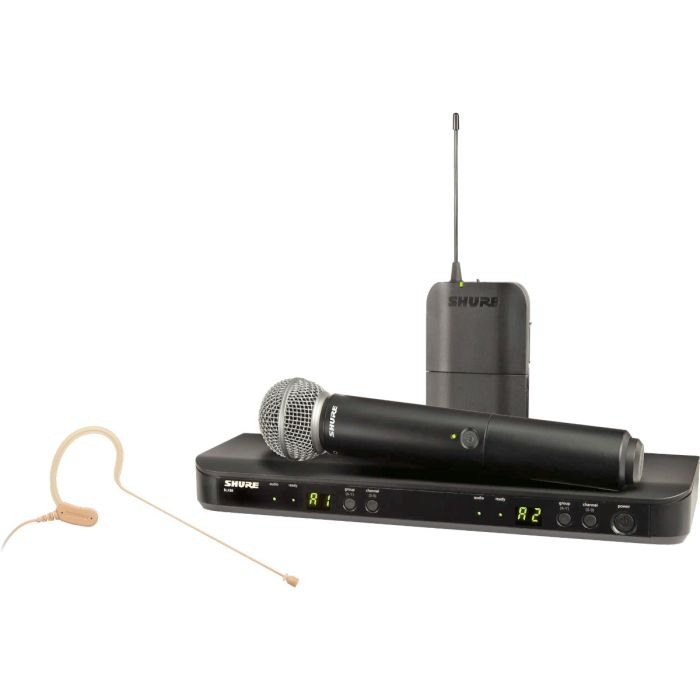

BLX1288/MX53 Wireless Combo System with SM58 Handheld and MX153 Earset
Price: 1009
Availability: Available For Order
More Information | Features |
-
Range of up to 300 feet
-
One-touch scan and selection
-
14 Hours of Transmitter Battery Life
-
2x AA (included)
-
12 channels per frequency band
|
|---|
| Dimensions |
| Dimensions |
|
| Receiver |
15.3 x 1.6 x 4.6" |
| Bodypack Transmitter |
2.5 x 4.3 x 0.8" |
| Handheld Transmitter |
8.8 x 2.1" |
| |
|
| Weight |
|
| Receiver |
15.1 oz |
| Handheld Transmitter |
7.7 oz |
| Bodypack Transmitter |
2.6 oz |
|
|---|
| Technical Specifications |
| Microphones |
|
| Microphone Type |
1x Earset
1x Handheld |
| Polar Pattern |
Cardioid (Handheld)
Omnidirectional (Earset) |
| Maximum SPL |
107 dB
|
| Sensitivity |
-41 dBV/Pa
|
| Output Connector |
1x TA4F/Mini-XLR 4-Pin Female (on Earset)
|
| Cable Length |
4.00' / 1.22 m
|
| Color |
Black |
| |
|
| Receiver |
|
| Receiver Type |
1x Tabletop
|
| Mounting Options |
No |
| Antenna |
2x Internal
|
| Number of Audio Channels |
2 |
| Audio I/O |
2x XLR 3-Pin Balanced Output
2x 1/4" TS Unbalanced Output |
| Network I/O |
No |
| USB/Lightning Connectivity |
No |
| Frequency Response |
50 Hz to 15 kHz (Dependent on Mic)
|
| Display |
Alphanumeric LED
|
| Power Requirements |
AC/DC Power Adapter |
| |
|
| System |
|
| Wireless Technology |
Analog UHF
|
| Diversity |
Yes |
| RF Frequency Band |
J11: 596 to 608 MHz / 614 to 616 MHz
|
| Number of RF Channel Frequencies |
123 |
| Max Operating Range |
300' / 91.4 m (Line of Sight)
|
| Max Transmitters per Band |
12 |
| Dynamic Range |
100 dBA
|
| Encryption |
No |
| Built-In Recorder |
No |
| Timecode Support |
No |
| Mobile App Compatible |
No |
| |
|
| Transmitters |
|
| Included Transmitters |
1x Bodypack
1x Handheld |
| RF Output Power |
10 mW
|
| Antenna |
Internal (Handheld)
Fixed Flexible Whip (Bodypack) |
| Input Level |
Microphone
|
| Audio I/O |
1x TA4M/Mini-XLR 4-Pin Male Input (on Bodypack Transmitter)
|
| Bias/Plug-In & Phantom Power |
5 V Bias/Plug-In Power No Phantom Support |
| USB I/O |
No |
| Muting |
Off/On Switch
|
| Gain Range |
-16 to +10 dB (Bodypack)
-20 to -10 dB (Handheld) |
| Auto-Level/Gain |
No |
| Sync Method |
Manual |
| Display |
Alphanumeric LED (In Battery Compartment) |
| |
|
| General |
|
| Transmitter Battery Type |
2x AA (Included)
|
| Transmitter Battery Life |
14 Hours (Alkaline)
|
| AC/DC Power Adapter |
12 to 15 VDC at 160 mA, Center-Positive (Included)
|
| Input Power |
12 to 15 VDC at 160 mA, 100 to 240 VAC, 60 / 50 Hz at 150 mA |
| Housing |
ABS |
|
|---|
| MPN | BLX1288/MX53 |
|---|
| Availability | Available For Order |
|---|
BLX1288/MX53 Wireless Combo System with SM58 Handheld and MX153 Earset
