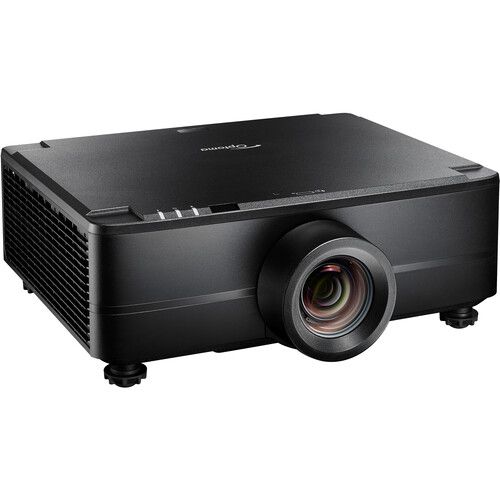

Optoma ZU820T 7400-Lumen WUXGA Laser DLP Projector
The ultra bright professional laser projector offers 8800 lumens with 4K and HDR compatibility.
The ultra bright professional laser projector offers 8800 lumens with 4K and HDR compatibility.
More Information | Features |
-
8800 lumens DuraCore laser projector - Ultra bright for immersive installations
-
Full motorized lens shift - Ideal for a simple set-up
-
Large zoom range - Motorized zoom expands placement opportunities
-
Long life - Delivers 30,000 hours of virtually maintenance-free operation
|
|---|
| Dimensions | Dimensions: 19.1"W x 6.9"H x 17.0"D
Weight: 30.86 lb |
|---|
| Technical Specifications |
| Image Display |
|
| Display System |
1-Chip DLP
|
| Native Resolution |
1920 x 1200
|
| Supported Resolutions |
Maximum: 3840 x 2160 @ 60 Hz
|
| Maximum Brightness |
7400 Lumens (ANSI)
|
| Uniformity |
95% |
| Offset |
50% |
| Aspect Ratio |
Native: 16:10
Supported: 16:9
Supported: 4:3 |
| Contrast Ratio |
1100:1
|
| Dynamic Contrast Ratio |
3,000,000:1
|
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Frame Sequential (up to 1080p)
Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) |
| Color Wheel |
3-Segment (RGB)
|
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15.38 to 91.15kHz
Vertical: 24 to 85Hz |
| |
|
| Lens |
|
| Includes Lens |
Yes |
| Focus |
Manual Powered
|
| Focal Length |
18.72 to 29.59mm
|
| Lens Shift |
Vertical: ± 55%
Horizontal: ± 25% |
| Optical Zoom |
Powered: 1.6x
|
| Throw Distance |
52.36 to 514.17" |
| Throw Ratio |
1.25 to 2:1 (200" Screen Size @ 23.0' / 7 m) |
| Projection Size |
50 to 300" |
| |
|
| Features |
|
| Keystone Correction |
Manual to Vertical: ± 30°
Manual to Horizontal: ± 30° |
| HDR Support |
Yes |
| Digital Zoom |
4x |
| Multi-Input Support (PIP/PBP) |
Yes, Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
20 W |
| Projection Tilt Option |
Yes |
| |
|
| Input/Output Connectors |
|
| Inputs/Outputs |
-
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
-
1x HDMI 2.0 Audio, Video Input
-
1x HDMI 1.4a Audio, Video Input
-
1x DE-15/DB-15 (VGA) Video Input
-
1x 1/8" / 3.5 mm Mini Audio Input
-
1x RJ45 LAN Input
-
1x HDMI Audio, Video Output
-
1x 1/8" / 3.5 mm Mini Audio Output
-
1x USB-A Power Output
-
1x BNC (VESA 3D Sync) Control Input
-
1x BNC (VESA 3D Sync) Control Output
-
1x DE-9/DB-9 (RS-232) Control Input
-
1x 1/8" / 3.5 mm Mini Remote Input
-
1x 1/8" / 3.5 mm Mini Control Output
|
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| |
|
| Hardware |
|
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| |
|
| General |
|
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 30,000 Hours
|
| Fan Noise |
Full Brightness: 36 dB
|
| Security |
Cable Lock Slot
Security Bar |
| Input Power |
90 to 264 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: < 520 W
Low Brightness: 260 W
Standby Mode (Lamp Off): < 0.5 W |
|
|---|
| MPN | ZU820T |
|---|
