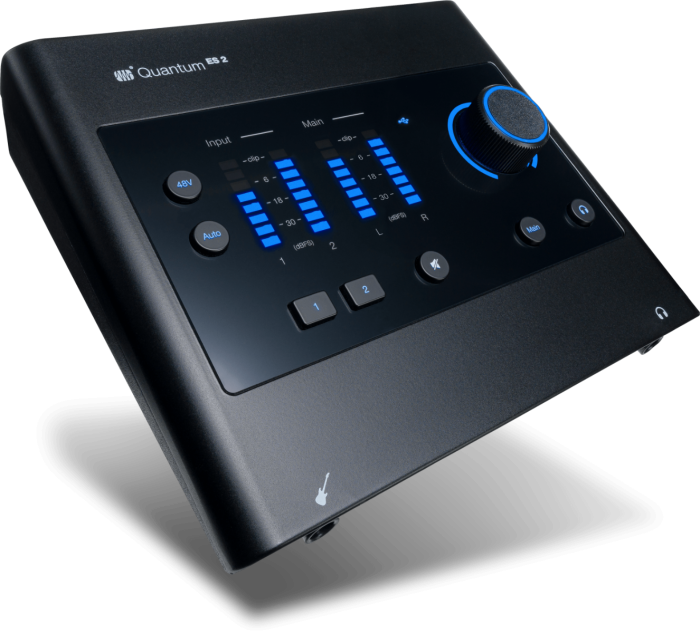

Presonus Quantum ES 2 USB-C Audio Interface
The Presonus Quantum ES 2 USB-C Audio Interface is a unquiqe piece of equipment that was co-developed with Fender engineers. This redesigned interface is great to create self-produced recordings.
Price: 249.99
Availability: Available For Order
The Presonus Quantum ES 2 USB-C Audio Interface is a unquiqe piece of equipment that was co-developed with Fender engineers. This redesigned interface is great to create self-produced recordings. More Information Features Dimensions Dimension: 6.9 x 6.2 x 1.9"
Weight: 1.5 lbs
Technical Specifications
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs: 0 to 75 dB, Hi-Z Inputs: 0 to 75 dB, Line Inputs: -10 to +10 dB
High-Pass Filter
No
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection
USB-C
Host Connection Protocol
Not Specified by Manufacturer
USB (Non-Host)
1x USB-C (Power Input)
Sync I/O
No
Network I/O
No
MIDI I/O
1x 1/8" / 3.5 mm TRS Type-B Input
Expansion Slots
No
Wireless
No
Performance
Frequency Response
XLR Mic Inputs: 20 Hz to 20 kHz ±0.2 dB, 1/4" Hi-Z Inputs: 20 Hz to 20 kHz ±0.2 dB, Combo XLR-1/4" Line Inputs: 20 Hz to 20 kHz ±0.1 dB, 1/4" Line Outputs: 20 Hz to 20 kHz ±0.1 dB, 1/4" Headphone Outputs: 20 Hz to 20 kHz ±0.2 dB
Maximum Input Level
XLR Mic Inputs: +14 dBu (Balanced, Minimum Gain), 1/4" Hi-Z Inputs: +15 dBu (Unbalanced, Minimum Gain), Combo XLR-1/4" Line Inputs: +15 dBu (Balanced, Minimum Gain)
Maximum Output Level
1/4" Line Outputs: +15 dBu (Balanced), 1/4" Headphone Outputs: 7.5 dBu (at 50 Ohms)
Impedance
Mic Inputs: 1600 Ohms, Line Inputs: 10 Kilohms, Line Outputs: 51 Ohms, Hi-Z Inputs: 1 Megohm, Headphone Outputs: 22 Ohms
Dynamic Range
Mic Inputs: 113 dBA, Hi-Z Inputs: 111 dBA, Line Inputs: 114 dBA, Line Outputs: 117 dBA, Headphone Outputs: 111 dBA, Digital: 120 dB
THD
Mic Inputs: 0.001% (1 kHz, Minimum Gain), Hi-Z: 0.002% (1 kHz, Minimum Gain), Line: Line Outputs: 0.001% (1 kHz, +4 dBu), Headphone Outputs: 0.02% (1 kHz)
EIN
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS / Windows
OS Compatibility
macOS
Mobile App Compatible
Yes: Android & iOS
General
Channels of I/O
2 Inputs / 2 Outputs
Built-In DSP
No
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
Knob
Power
Power Requirements
USB Bus Power, USB Power Adapter (Not Included)
Phantom Power
48 V, Selectable On/Off
MPN 2777700503 Availability Available For Order
