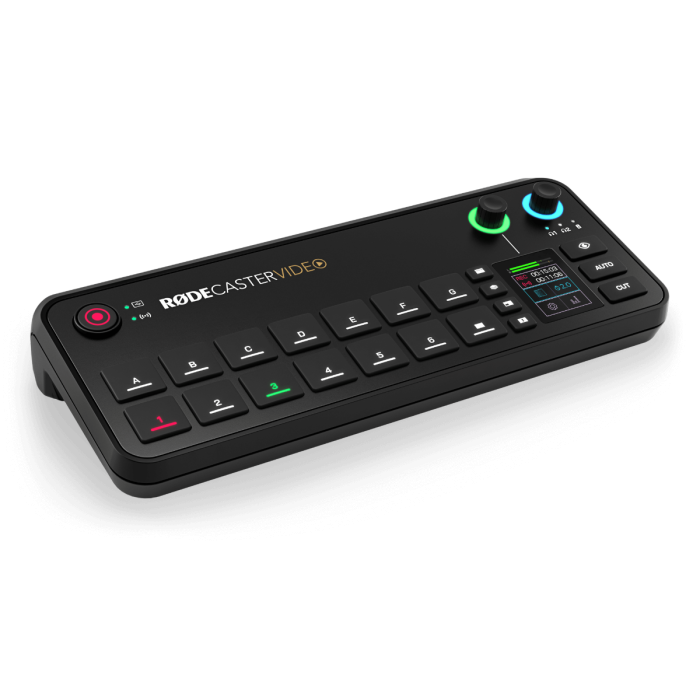

RODECaster Video A/V Production Console

SKU
RODECASTERAVPRO
$1,199.00

If you are looking for a system that offers professional switching, recording, and production applications look no farther! The RODECaster Video A/V Production Console has all the capabilities for all your needs!

$1,199.00
In stock
Availability: IN STOCK

If you are looking for a system that offers professional switching, recording, and production applications look no farther! The RODECaster Video A/V Production Console has all the capabilities for all your needs!

More Information
Features
  • 4 x HDMI

  • 2 x USB-C Inputs

  • Bluetooth 5.3 and Wi-Fi 6 Capability

  • APHEX® VoxLab™ Processing

  • 20Hz – 20kHz Frequency range

  • 48kHz / 32-bit Streaming Sample Rate

  • 48kHz / 24-bit Recording Sample Rate



Dimensions

Dimensions:  12 x 5.2 x 2.4"

Weight:  2.8lb

Technical Specifications
Display & Layout
Display Size 2
Available M/E Layers 9 M/E
Effect Types
2x Chroma Key
Downstream Keys 2x Overlay
Audio Mixing 20-Channel Mixing

Connectivity
Inputs/Outputs 3x USB-C(Stereo)
Other I/O 1x RJ45 LAN
HDCP Support No
IP Video 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols RTMP
Compatible Services
Facebook Live, Twitch, YouTube Live
Recording Media
1x microSD (Unspecified Type)
Recording Modes 1920 x 1080p (H.264/AVC)

Processing
Switching Type
Pushbutton
Processing Resolution
1080p at 23.98/24/25/29.97/30/50/59.94/60
Color Processing 8-Bit 4:4:4 RGB

Input
Number of Video Input Sources 6
Video Inputs 4x HDMI (1.4b)
2x USB-C (UVC)
Input Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
USB-C (4:4:4/4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs 2x Combo XLR-1/4" TRS
5x Proprietary (Shared with Video)
Embedded Audio Input Wireless, USB-C, HDMI

Output
Video Output Channels 2
Video Outputs
2x HDMI
Output Video Format HDMI (8-Bit 4:4:4 RGB, YUV)
1080p at 24/25/30/50/60 fps
Audio Outputs 2x 1/4" TRS,  2x 1/4" TRS Line

Hardware
OS Compatibility
macOS 10.15 or Later / Windows 10 to 11
Wi-Fi
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth 5.3
Power I/O 1x USB-C Input
Power Consumption Power Supply: 20 VDC at 3 A (60 W)
MPNRCV
