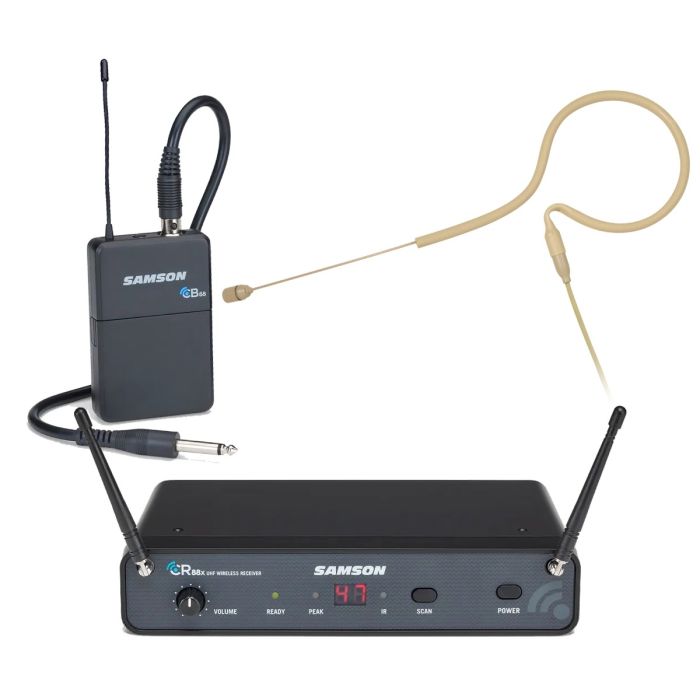

Samson Concert 88 Wireless Guitar Microphone System with High-Quality Ear-Worn Mic

With the Samson 88 Concert Series wireless microphone system you can use up to 16 systems at the same time!

The Samson 88 Concert Wireless Guitar Microphone System - D Band has an operating range of 300 feet!

The receiver features a true diversity dual-antenna design whereby internal signal processing switches to the antenna that is receiving a stronger signal. This helps to prevent drop-outs and maintain a more accurate transmission. The unit includes a tone key and an auto-mute function to eliminate noise if the receiver ever loses the signal. For controls, the receiver features a power button, volume knob, select button, a 7-segment channel indicator LED, as well as audio ready, peak, and IR indicator lights.

Up to 16 of these systems may operate simultaneously on two frequency bands from a maximum operating range of 300'. The bodypack transmitter is synced with the receiver via infrared. It can operate for up to eight hours on two AA batteries.

- Tech specs

Bodypack Transmitter
- Input Connector:    Mini-XLR (P3)
- Input Impedance:    1 MOhm
- Input Gain:    38 dB
- RF Power:    10 mW EIRP
- Power Requirements:    Two AA (LR6) alkaline batteries
- Battery Life:    8 hours
- Sync System:    Infrared
- Dimensions:    3.75 x 2.44 x 0.75" (96.0 x 62.0 x 18.5 mm)
- Weight:    0.2 lb (93.0 g)

Receiver
- Type:    UHF
- Audio Output Level:    Unbalanced: +14 dBu - Balanced: +9 dBu
- Audio Output Impedance:    Unbalanced: 810 Ohms - Balanced: 240 Ohms
- Sensitivity:    -100 dBm / 30 dB sinad
- Image Rejection:    > 50 dB
- Operating Voltage:    15 VDC 200 mA
- Dimensions:    8.25 x 4.9 x 1.75" (210.0 x 125.0 x 44.0 mm)
- Weight:    0.85 lb (3.88 kg)

Ear-worn

- Polar Pattern: Omni-directional
- Sensitivity: 42dB +/- 3dB
- Impedance: 750 Ohm ± 30% (at 1KHz)
- Frequency Response: 50Hz-20KHz
- S/N Ratio: 58 dB
- Working Voltage: DC 1~5V
