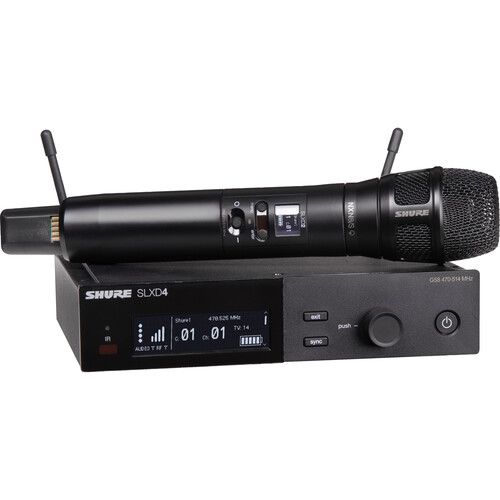

Shure SLXD24/N8SB Wireless Handheld System With Nexadyne™ 8/S Handheld Transmitter
The Shure SLXD24/N8SB Wireless Handheld System is a convenient and easy to set up system. This system is suitable for small- to medium-sized event spaces.
Price: 989
Availability: Available For Order
The Shure SLXD24/N8SB Wireless Handheld System is a convenient and easy to set up system. This system is suitable for small- to medium-sized event spaces. More Information Features Dimensions Dimensions:
Receiver: 7.8 x 1.7 x 6" / 197 x 42 x 152 mmTransmitter: 1.5 x 6.9" / 37.1 x 176 mm
Weight:
Receiver: 1.8 lb / 816 g
Transmitter: 5.2 oz / 147 g
Technical Specifications
Microphone
Microphone Type
1x Handheld with Interchangeable Capsule (Nexadyne 8/S Included)
Polar Pattern
Supercardioid
Frequency Response
50 Hz to 20 kHz
Sensitivity
-51 dBV/Pa
Color
Black
Transmitter
Included Transmitters
1x Handheld
RF Output Power
10 / 1 mW (Selectable)
Antenna
Internal Single-Band Helical
Input Level
Microphone
Audio I/O
No
USB I/O
No
Muting
No
Gain Range
0 to +21 dB
Auto-Level/Gain
No
Frequency Response
20 Hz to 20 kHz (Dependent on Mic)
Sync Method
IR
Display
OLED
Construction
Aluminum
Receiver
Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna
2x Removable BNC 1/4 Wave External (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x 1/4" TRS Balanced Output
Network I/O
1x RJ45 (Manual IP, DHCP)
Gain Range
0 to +21 dB (3 dB Steps)
Frequency Response
20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Display
Backlit LCD
Power Requirements
AC Input
Construction
Metal
System
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
RF Frequency Band
G58: 470 to 514 MHz
Number of RF Channel Frequencies
1760
Max Operating Range
328' / 100 m
Max Transmitters per Band
32
Dynamic Range
120 dBA (Typical)
Latency
3.2 ms
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: iOS Only
Power
Transmitter Battery Type
2x AA (Included) or
Transmitter Battery Life
8 Hours (Lithium Shure SB903)
Battery Charging Time
1.25 to 5.5 Hours
AC/DC Power Adapter
15 VDC at 600 mA (Included)
Input Power
15 VDC at 600 mA
MPN SLXD24/N8SB Availability Available For Order
