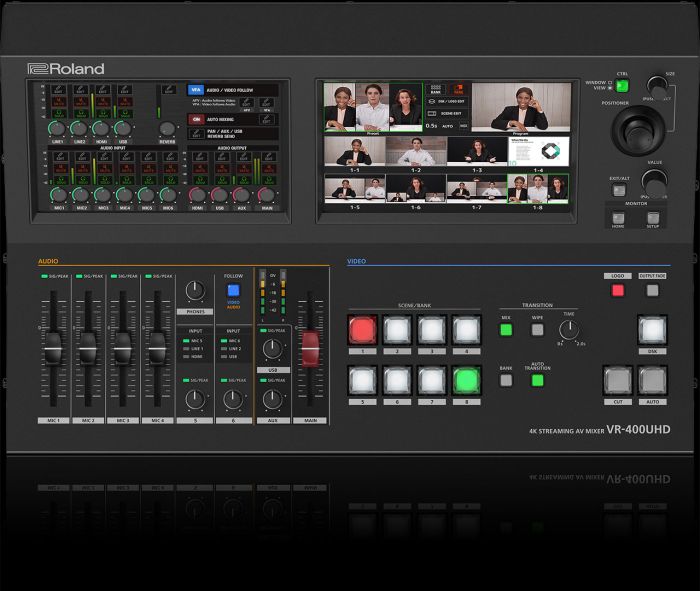

VR-400UHD 4K Streaming AV Mixer

VIDEO

Video Processing- 4:2:2 (Y/Pb/Pr), 10-bit

Number of Video Channels- 4 channels

Video Input Formats- HDMI 4K IN:
2160p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz
1080p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz
1080i/59.94 Hz, 50 Hz
720p/60 Hz, 59.94 Hz, 50 Hz
* HDCP 1.4, 2.2 supported.
* Conforms to CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

Video Output Formats

HDMI 4K OUT:
2160p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz
1080p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz
* HDCP 1.4, 2.2 supported.
* Conforms to CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

HDMI HD OUT:
1280 x 720/60 Hz
* HDCP 1.4 supported.
* Conforms to CEA-861-F
* Color Gamut: Rec.709
* Dynamic Range: SDR

4K STREAMING:
960 x 540, 1280 x 720, 1920 x 1080, 2560 x 1440, 3840 x 2160
* Frame Rate (--2560 x 1440): 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz.
* Frame Rate (3840 x 2160): 25 Hz, 29.97 Hz, 30 Hz.
* Color Gamut: Rec.709
* Dynamic Range: SDR
* Conforms to USB Video Class

Still Image: Bitmap File (.bmp) Maximum 3840 x 2160 pixels, 24-bit color, uncompressed.
JPEG File (.jpg, .jpeg) Maximum 3840 x 2160 pixels, 24-bit color
PNG File (.png) Maximum 3840 x 2160 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel supported

Video Effects- Transition: Cut, Mix, Wipe (11 patterns)
Composition: Background, Layer 1 (PinP + Key)(*1), Layer 2 (PinP + Key) (*1), DSK (*2), Logo (*3)
Other: Multi-View, Output Fade, Output Freeze, Output Capture, Still Image playback, Test pattern output
*1 Chrominance Key, Luminance Key
*2 Chrominance Key, Luminance Key, Still image alpha channel
*3 Chrominance Key, Luminance Key, Still image alpha channel, For 4K STREAMING only. Maximum size is 1920 x 1080.

AUDIO

Audio Processing- Sample rate: 24 bits, 48 kHz

Number of Audio Channels- 14 Channels
* MIC x6, LINE x2, HDMI, USB

Audio Formats- HDMI 4K IN : Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI 4K OUT : Linear PCM, 24 bits, 48 kHz, 2 ch
4K STREAMING (Input and Output) : Linear PCM, 16 bits, 48 kHz, 2 ch

Audio Effects- Channel Effects: Auto Gain, High pass filter, Anti-feedback, Noise Gate, De-esser, Compressor, 4-Band PEQ, Delay, Auto Mixing
Master Effects: Reverb, Compressor/Limiter, Loudness Auto Gain Control, 15-band GEQ, Delay
Others: Output fade, Test tone output

CONNECTORS

Video Input Connectors- HDMI 4K IN 1--3, 4-1--4-4: HDMI type A (HDMI 2.0) x 7
* HDCP 1.4, 2.2 Supported
* Multi-format Supported

Video Output Connectors- HDMI 4K OUT 1--2: HDMI type A (HDMI 2.0) x 2
* HDCP 1.4, 2.2 Supported
* Multi-format Supported

HDMI HD OUT: HDMI type A (HDMI 1.4) x 1
* HDCP 1.4 Supported

4K STREAMING: USB Type-C (R) (USB 3.2 GEN 2 10 Gbps)

4K STREAMING: USB Type-C (R) (USB 3.1 GEN 2 10 Gbps)

Audio Input Connectors- Analog:
AUDIO MIC IN 1--4: Combo type (XLR, 1/4-inch TRS phone) balanced, phantom power (DC 48 V, 10 mA Max)
AUDIO MIC IN 5--6: 1/4-inch TRS phone, balanced
AUDIO LINE IN 1--2: RCA phono type

Digital:
4K STREAMING: USB Type-C (R)
HDMI 4K IN 1--3, 4-1--4-4: HDMI type A (HDMI 2.0) x 7

Audio Output Connectors- Analog:
AUDIO OUT MAIN (L, R): XLR type
AUDIO OUT AUX (L, R): RCA phono type
PHONES: Stereo 1/4-inch phone type

Digital:
4K STREAMING: USB Type-C (R)
HDMI 4K OUT 1--2: HDMI type A (HDMI 2.0) x 2
HDMI HD OUT: HDMI type A (HDMI 1.4) x 1

Other Connectors- USB HOST1--2: USB A type
RS-232: 9 pin D-sub type (Male)
LAN: RJ45 type, 100BASE-TX
TALLY: 9 pin D-sub type (Female)
